产品中心
ADR-H系列
ADR-H系列转动惯量低,适用于高速应用
产品介绍
规格参数

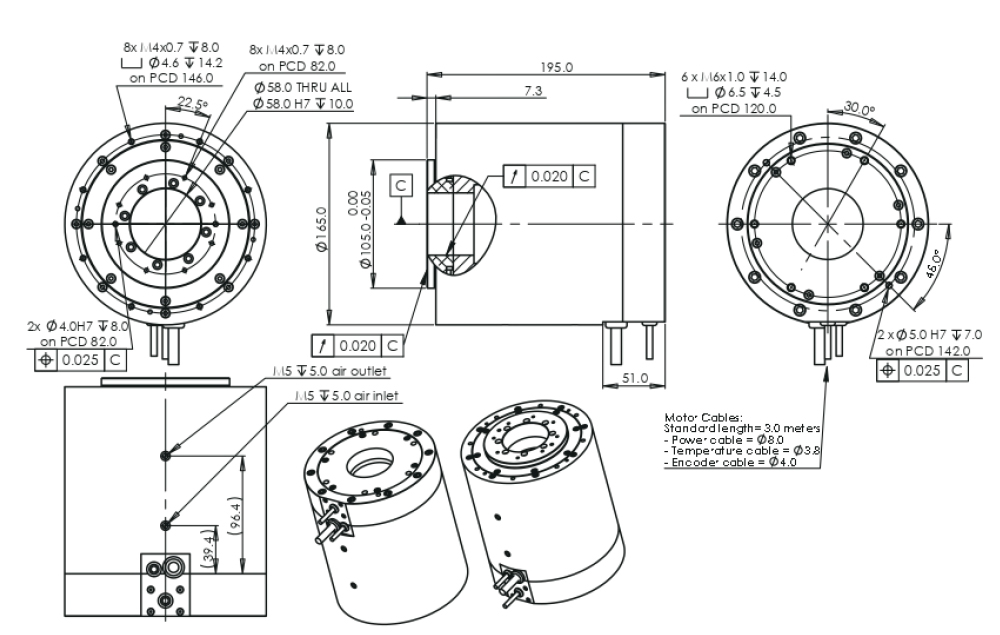

尺寸图

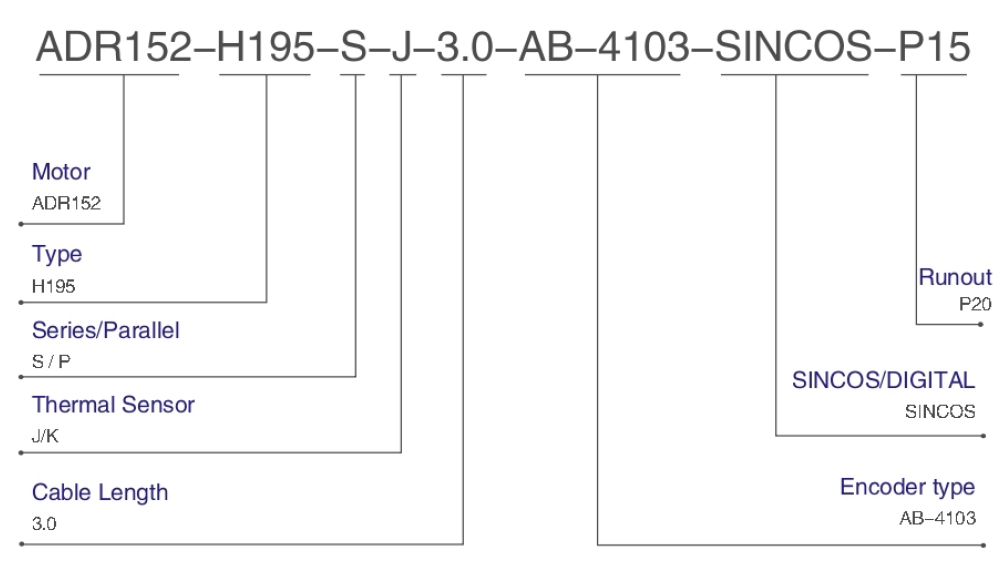

订购信息
设计特点
A.
直驱无刷永磁电机
B.
高扭矩密度
C.
低转动惯量
D.
适用于高速应用
电机规格
外径
高度
中孔
最大速度@峰值转矩
重复定位精度
转子惯量
(mm)
(mm)
(mm)
(rpm)
(arc sec)
(kgm
2
)
ADR152-H195
165
195
58
530
+/-2.0
4.5E-03
